Project Overview
Port One Ipswich Industrial Park, a prominent logistics hub in Suffolk, has made a significant stride toward sustainability with the installation of a 150kW solar photovoltaic (PV) system. The project aimed to reduce the park’s carbon footprint, lower energy costs, and contribute to the UK’s renewable energy targets. The installation was carried out using advanced SolarEdge technology, known for its efficiency and scalability in commercial solar applications.
Client Background
Port One Ipswich Industrial Park serves as a key logistics and distribution centre, housing multiple businesses that require substantial energy resources for their operations. The park management sought to incorporate renewable energy to align with corporate sustainability goals and reduce reliance on grid-supplied electricity.
Implementation and Challenges
The installation process was carefully planned to minimise disruption to the park’s operations. One of the key challenges was to ensure the solar generation was maximised, this was effectively mitigated using SolarEdge’s power optimizers. These devices ensure that each module operates independently, maximising the overall system performance despite the challenging conditions.
Results and Impact
Since its commissioning, the 150kW solar system has significantly reduced the units energy costs by offsetting a substantial portion of its electricity consumption with renewable energy.
The system generates approximately 133,480 kWh of clean energy annually, which translates to a reduction of over 30 metric tons of CO2 emissions each year.
System Design and Components
The solar system was designed to maximise energy production and efficiency while considering the unique layout and energy needs of the industrial park. The installation includes:
- SolarEdge Inverter Technology: The SolarEdge system was selected for its superior energy conversion efficiency and enhanced monitoring capabilities. The system’s power optimizers ensure each module operates at its maximum potential, minimizing losses due to shading or module mismatch.

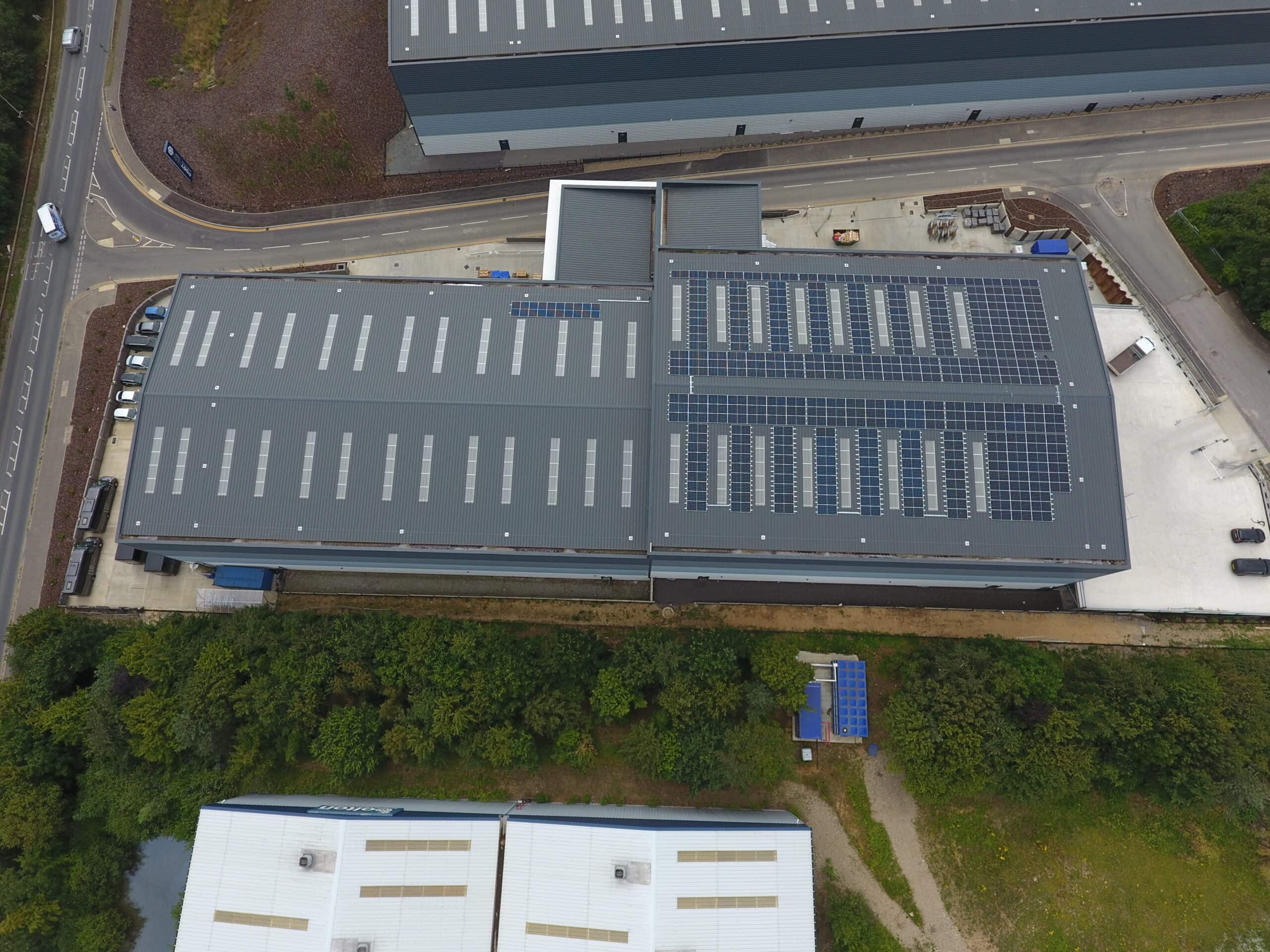

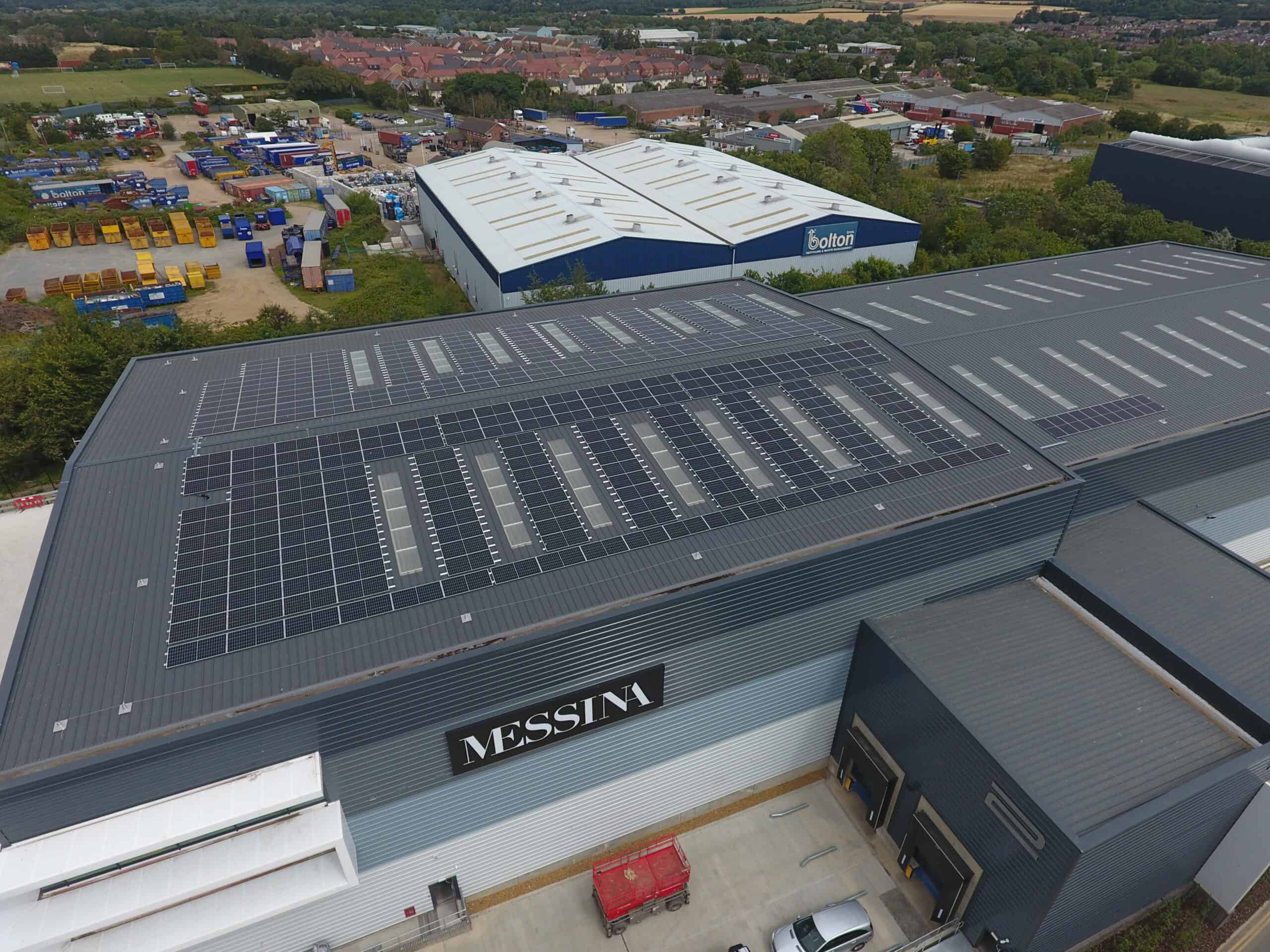

- PV Modules: High-efficiency PV modules were strategically installed across the available rooftop space to capture optimal sunlight and provide consistent energy output throughout the year.
- Monitoring and Maintenance: SolarEdge’s advanced monitoring platform allows real-time performance tracking, ensuring the system operates efficiently and any issues can be quickly addressed. This reduces downtime and maintenance costs, providing long-term reliability.
| System Info | |||
| System Size | 150Kwp | PV Generation (Energy) | 133,480 Kwh/Year |
| Inverters | 2 | C02 Emmission saved (Annually) | 31,100kg |
| Solar Panels | 334 | Equivalent Trees Planted (Annually) | 1,428 |
Conclusion
The successful deployment of the SolarEdge 150kW system at Port One Ipswich Industrial Park demonstrates the feasibility and benefits of integrating solar power into industrial operations. The project not only supports the park’s sustainability goals but also sets a precedent for other industrial facilities to follow. With ongoing monitoring and maintenance, the system is expected to continue delivering environmental and economic benefits for years to come.
